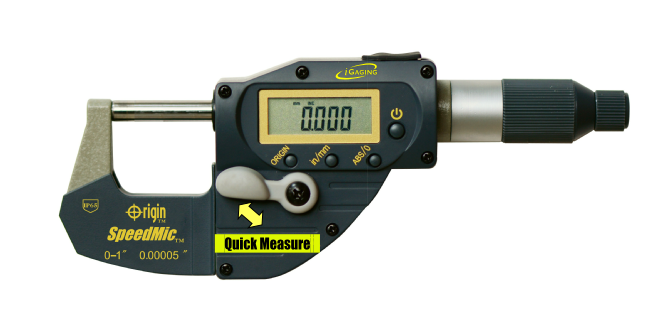

Home Absolute Encoding - IP65 - Data Output - Fast & Accurate - Spring Load Movement iGAGING Origin SpeedMic Data Output showing

Item#

Measure Range

Resolution

Repeatability

Accuracy

Data Output

35-070-B25

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-025

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-050

1-2" / 25-50mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-075

2-3" / 50-75 mm

0.0005"/0.001mm

0.0005"/0.001mm

0.0002" / 0.004mm

Yes

35-070-100

3-4" / 75-100 mm

0.0005"/0.001mm

0.0005"/0.001mm

0.0002" / 0.004mm

Yes

35-070-150

5-6" / 100-125mm

0.0005"/0.001mm

0.0005"/0.001mm

0.0002" / 0.004mm

Yes

35-070-313 0-3" Set

0-1", 1-2", 2-3" set




Yes

35-070-314 0-4" Set

0-1", 1-2", 2-3", 3-4"




Yes

35-070-B01 Blade Mic

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-B02 Blade Mic

1-2" / 25-50mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-C01 Spindle Mic

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-D01 Disc Mic

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-D02 Disc Mic

1-2" / 25-50mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-i01 Inside Mic

0-1" / 0-25mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

35-070-i02 Inside Mic

1-2" / 25-50mm

0.0005"/0.001mm

0.0005"/0.001mm

0.00015" / 0.003mm

Yes

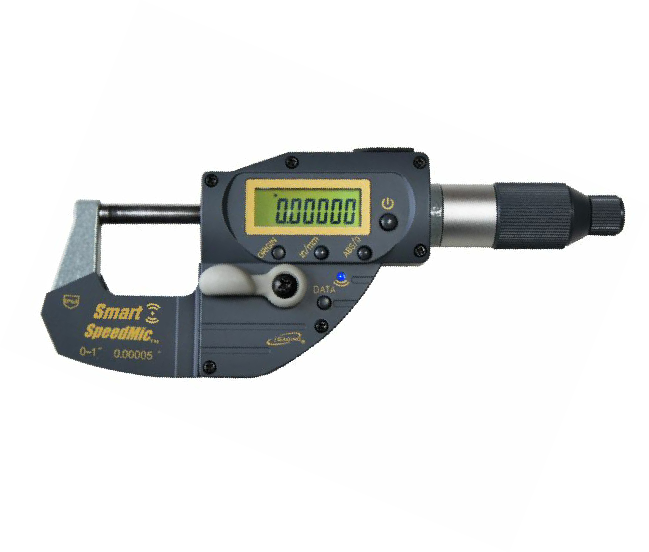

100-700-USB				             	SPB/USB DataConnect Kit 35-WL-CAD                    SPC/USB Wireless DataConnect kit *Some product/s may not be available in the U.S. Manufacturer supplied data. Information may change without notice. Please contact iGAGING for error or update information. Copyright © 2015  iGAGING® Designed by iGAGING in California U.S. Patented New with  Smart Wireless
