Home *European models showing *DataConnect Kit not included

Item#

Measure Range

Reading

Accuracy

Repeatability

SPC Data Output

35-700-10

0-0.5"/0-12.5mm

0.00005"

0.00016"

0.00005"

Yes

35-700-25

0-1"/0-25mm

0.00005"

0.00016"

0.00005"

Yes

35-700-50

0-2"/0-50mm

0.00005"

0.0002"

0.00005"

Yes

35-705-10

0-0.5"/0-12.5mm

0.0005"

0.0005"

0.0005"

Yes

35-705-25

0-1"/0-25mm

0.0005"

0.0005"

0.0005"

Yes

35-705-50

0-2"/0-50mm

0.0005"

0.001"

0.0005"

Yes

Battery

3V CR2032

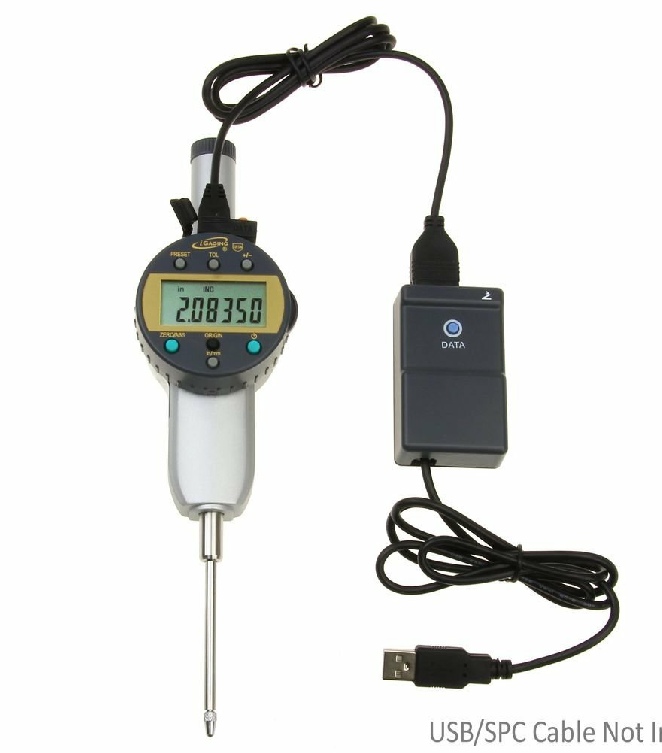

100-700-USB

Cable DataConnect





35-WL-CAD

Wireless DataConnect





Manufacturer supplied data. Information may change without notice. Please contact iGAGING for error or update information. Copyright © 2015  iGAGING® - Absolute encoding - Origin setting - Tolerance - Preset value - IP54 - Inch / mm - High contrast LCD Display - Face rotation upto 330° - Data output  - Carbide tip Designed by iGAGING in California 0-2” showing 0-1” 0-0.5”
