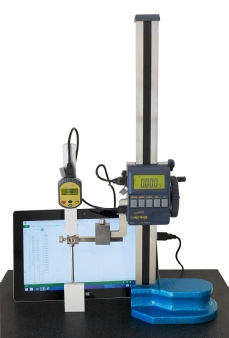

Home - Absolute encoding - Origin setting - Preset value - IP54 - Inch / mm - High contrast LCD Display - Data output - Carbide tip - Work with iGAGING Origin Height Gauge to increase the overall accuracy of the height gauge.

Item#

Measure Range

Reading

Accuracy

Repeatability

Data Output

35-950-12

0-0.5"/0-12.5mm

0.00005"

0.00016"

0.00005"

Yes

35-950-25

0-1"/0-25mm

0.00005"

0.00016"

0.00005"

Yes

35-950-50

0-2"/0-50mm

0.00005"

0.00023"

0.00005"

Yes

35-950-99

0-4"/0-100mm

0.00005"

0.0003"

0.0005"

Yes

35-955-12

0-0.5"/0-12.5mm

0.0005"

0.0005"

0.00005"

Yes

35-955-25

0-1"/0-25mm

0.0005"

0.0005"

0.00005"

Yes

35-955-50

0-2"/0-50mm

0.0005"

0.0005"

0.00005"

Yes

35-955-99

0-4"/0-100mm

0.0005"

0.001"

0.00005"

Yes

Battery

3V CR1632





100-700-USB

Cable Data





35-WL-28

Wireless Data





35-BT-28

Smart Wireless

connect to

Bluetooth

devices

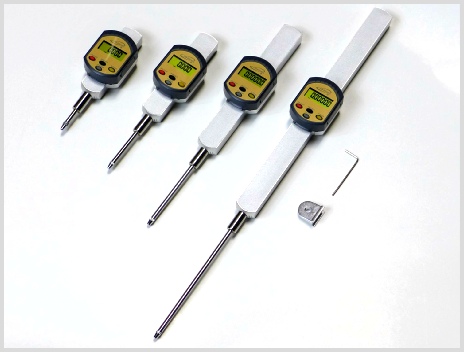

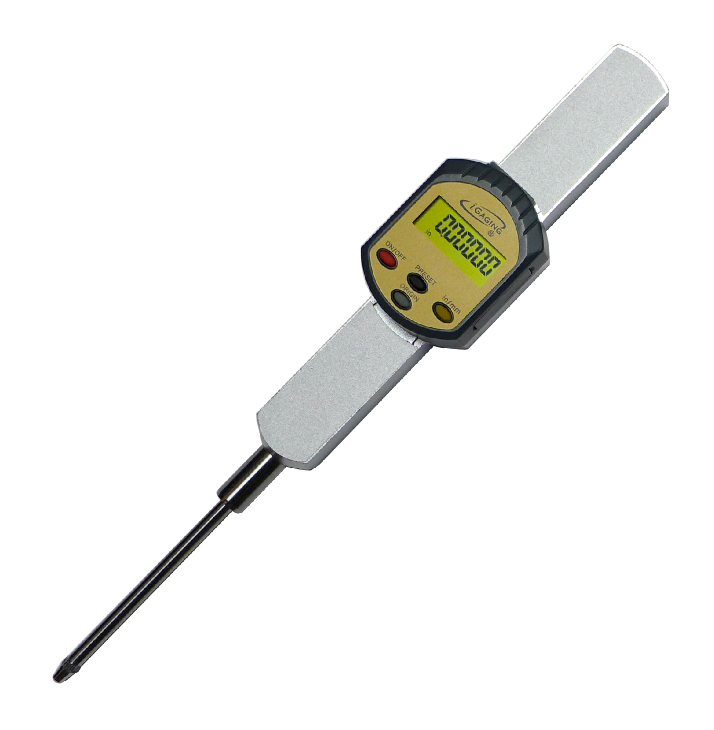

*European models showing *Height Gauge and DataConnect Kit not included Manufacturer supplied data. Information may change without notice. Please contact iGAGING for error or update information. Copyright © 2015  iGAGING® 0-4” model showing Most popular Most popular
