iGaging ABSOLUTE ORIGIN long range heave duty digital caliper
100-700-60  0-24”
100-700-90  0-40”

iGaging's Origin Digital Caliper uses SUPER HIGH ACCURACY ABSOLUTE memory technology. It keeps track of its origin position once set. Whenever the digital caliper turned on, the easy-view large LCD displays the actual sensor position ready to start measuring. It's not necessary to reset zero. The measuring speed is unlimited. Standard USB data output. High quality surface finish for extra smooth slider movement.

Data output port standard.  SPC/USB cable available separately.

Features:
Unlimited measuring speed
Resolution: 0.0005"/0.01mm
Accuracy: 0.001"/0.02mm
Range: 24"/600mm
Measuring speed: Unlimited
Hardened Stainless steel, lapped finished
Operating environment:temperature 0°c+40°c; relative humidity: 80%
Battery life:more than 1 year under normal operation

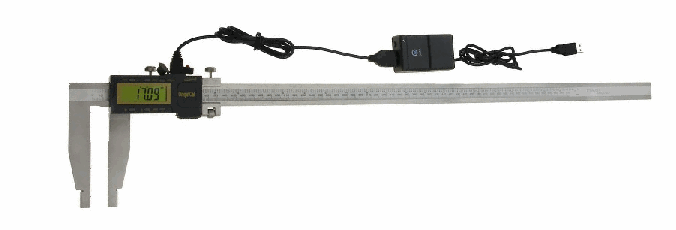

SPC Output with USB connection available (search amazon for: B00INL0BA2)
Meets DIN Standard 862; ISO 9001 certified manufacturing

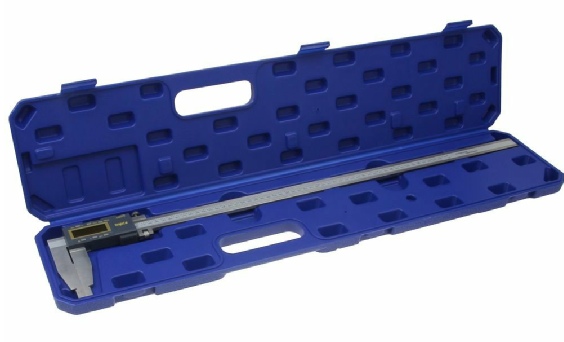

Protective case included


*Optional product showing / photo not up to scale
